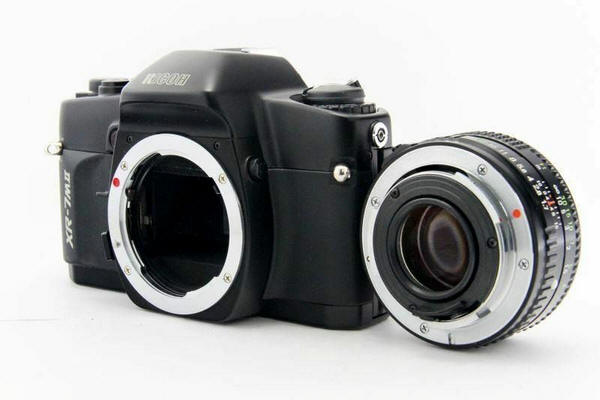

I have no information but these images
of the Ricoh XR7 Mark II
Obvious style difference from XR7,
was being sold from Japan,
using a Rikenon P and but there is
no contact pin on the body,
auto 2000 exposure setting though ?

From the Ricoh website

This is a standard single-lens reflex camera that takes advantage of the features of the popular and 　long-lasting XR 7 , and has been equipped with semiconductors and other components to suit the times. (upgraded electronics)
The price was low because it focused on only the necessary functions, and it received good reviews as a sub camera.

Release date: October 1993
Film system: Film with 35mm cartridge (135)
Screen size: 24×36mm
Mount K mount: (*Note)
Lens: Not decided in particular
Shutter: Metal focal plane electronic shutter 8 - 1/2000 (when automatic)
B ・ 1 - 1/1000 (when manual) With self-timer
Finder: Pentaprism SLR shutter speed display
Exposure control: Aperture priority AE
Power supply: Uses 2 LR44 or SR44

Ricoh XR7 mark II camera
