CLICK HERE FOR Ricoh Shotmaster Tru-Zoom PDF
VERSION OF THIS PAGE
CONTENTS
Attaching the strap ............... Inserting the battery ............... Opening the viewfinder cover .......... Checking the battery .............. Loading the film ................. Setting the film speed .............. Holding your camera .............. Viewfinder . .. . . . . . . . . . . . . . . Zooming the lens ................ Multi auto-focus ................. Rewinding the film (Auto reverse) .... ...
|
Auto night-photography ... Using the self-timer ... Creative modes ...
Flash-on mode ... TV mode ...

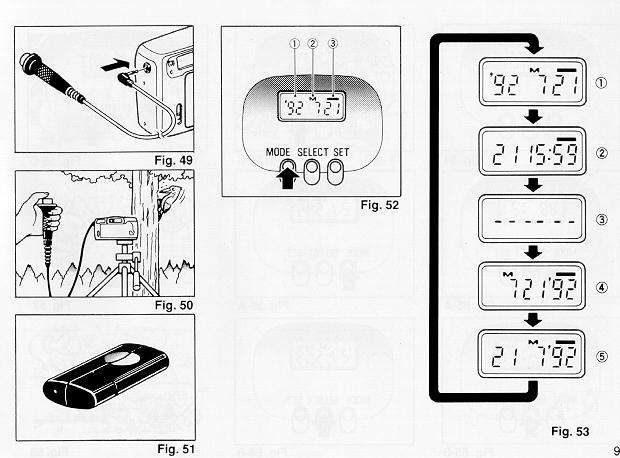

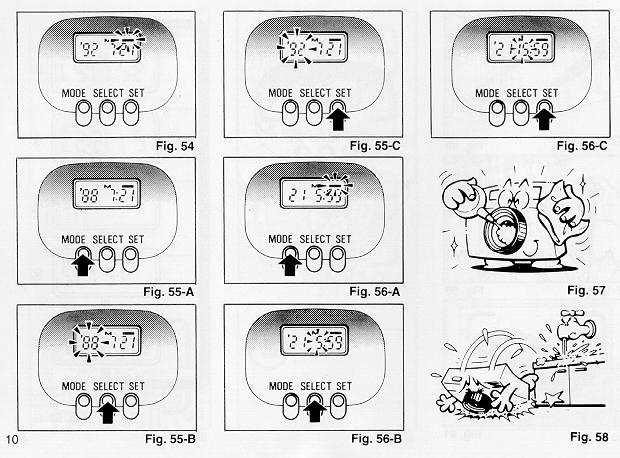

(Optional) Databack settings .. ... ... Proper care of your camera ... ... ...
|
We are most gratified that you have selected a RICOH camera. Before using
your camera, please be sure to read these instructions carefully.

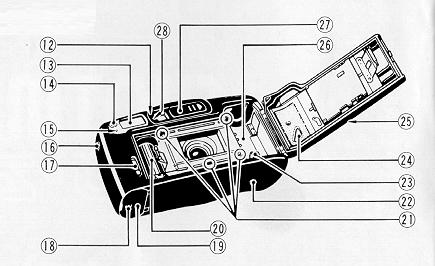

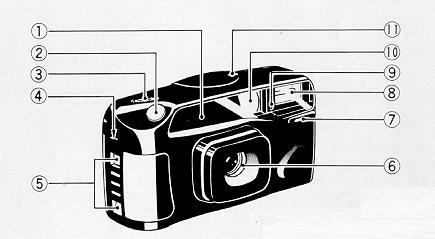

LOCATING THE CONTROLS
(1) Distance Measuring Windows |
|
(16) Remote Control Socket |
ATTACHING THE STRAP

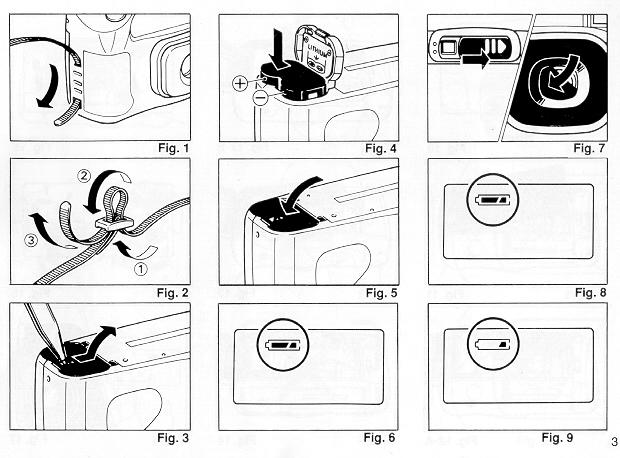

1. Run the end of the Strap down through the Strap Holder. (Fig. 1 )
2. Then feed the end through the Buckle. (Fig. 2)
INSERTING THE BATTERY
The camera will not operate unless the battery is installed. It is important to
make sure that the battery installed correctly.
1. Use a pen to push the Battery Compartment Cover Latch in the direction of the
arrow and pull open the cover. (Fig.3)
2. Insert the recommended' 6 volt lithium battery, contact end first, checking
that the + and - on the battery are aligned according to polarity diagram inside
the battery compartment. (Fig. 4)
3. Close the battery Compartment Cover by pushing it in the direction of the
arrow until it locks firmly in place. (Fig. 5)
* With the battery inserted correctly, the Battery Condition Mark
appears on the LCD Panel when the Lens Shield is opened. (Fig. 6)
* Do not remove the battery from the camera until you are ready to replace it.
* When replacing the battery, do so as quickly as possible to avoid erasing
camera memory. We recommend replacing the battery when there is no film in the
camera.
CLICK HERE FOR FIGURES 1 - 9
Recommended* Replacement 6V Lithium Batteries Include:
Lithium battery (6V)
Panasonic CR-P2p
Duracell XL DL223A (Made in U.S.A.)
Kodak K223LA, or equivalent
OPENING THE VIEWFINDER COVER
1. Open the Lens Shield by sliding the Viewfinder Cover in the direction of
arrow. (Fig. 7)
* You can only take pictures when the Lens Shield is completely open.
* To avoid tripping the shutter inadvertently and wasting battery power, always
keep Viewfinder Cover closed when you are not taking pictures.
* When the Viewfinder Cover is closed, all LCD indicators will disappear to
conserve battery power.
CHECKING THE BATTERY
1. The
symbol is displayed on the LCD Panel when battery power is sufficient. (Fig. 8)
2. When the battery is nearly exhausted, the
symbol will appear. (Fig. 9) Release with a new battery as soon as possible.
(Use of flash at this time is not recommended.)
3. When the battery is completely exhausted, the

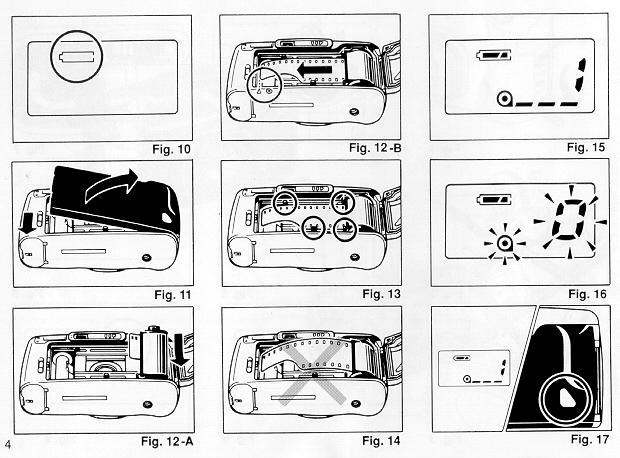

symbol will be displayed. (Fig. 10) Replace with a new battery.
* Even an exhausted battery has the ability to hold memory Do not remove battery
until a new one is available. Memory will be held for only about 15 minutes
after battery is removed.
* Cold temperatures will reduce battery efficiency In freezing weather, the
symbol may turn off and only the
or C
symbol may show in the LCD Panel. When the camera returns to normal temperature,
the Battery "All Right"
symbol should reappear. If you are taking pictures in cold weather, keep the
camera warm and take it out only when you need it.
* If the battery voltage is insufficient, the shutter may not release or the
film may not advance completely.
In the following cases, replace the battery:
1 ) When the battery mark displays the symbol.
2) When the shutter does not release.
3) When film advance and rewind cannot be done.
4) When the self-timer does not function.
CLICK HERE TO SEE FIGURES 10- 17
LOADING THE FILM
Always avoid direct sunlight when loading the film.
1. Push the Back Cover Latch Downward to open. (Fig. 11)
2. Load the film cassette into the Film Chamber and pull out enough film leader
to extend past the mark of the film reader position. (Figs. 12-A, 12-B)
* If there is any dust on the inside lens surface, use a blower to blow the dust
away.
* We suggest that you become familiar with your new camera by shooting and
processing at least one roll of film before using your camera to record an
important occasion.
3. Make sure the film stays within the Film Guides and lies flat. (Figs.13, 14)
4. Press the Back Cover shut so that the Back Cover Latch returns to its
original position. The film is automatically advanced until numbered "1" appears
in the LCD Panel. As soon as you close the Back Cover, the LCD Panel should
confirm proper loading with the following: (Fig. 15)
(1) Film Cassette Loaded Symbol
(2) Film Advance Symbols (these symbols will flash in
sequence toward the right to tell you the film is winding.)
(3) Exposure Counter
CLICK HERE TO SEE FIGURES 10- 17
5. If
the film has not advanced correctly and is not taken up onto the Film Take-up
Spool, the Film Cassette Loaded Symbol and Exposure Counter will blink (Fig.
16), or the LCD Panel will not show all film properly loaded signs mentioned in
the step 4 (when Viewfinder Cover is open). The shutter release will also lock
so you cannot take a picture until the film is loaded properly.
Reload the film by following steps 1-4 shown above. * Weather there is film in
your camera or not can be confirmed by either the Film Loaded Window or the Film
Cassette Loaded Symbol in the LCD Panel. (Fig.17)
* You can confirm that the film-wind or rewind is working properly by observing
the Film Advance symbols.
* You can load film in your camera with the Lens Shield closed. However, the
loading sign will disappear after 5 sec.
* Do not touch the inner lens with your fingers or the edge of film. (Fig. 18)
SETTING THE FILM SPEED
DX-coded film cassettes have black-and-silver patterns
corresponding to film speeds that the camera reads and automatically sets. Your
camera accepts DX films with speeds ranging from ISO 64 to 3200. Before loading
your film, please check whether the cassette is DX-encoded or not. (Fig. 19)
When using DX coded films, setting the film speed is not necessary. Your camera
automatically sets the correct film speed.
When using a film without DX code, your camera will automatically set itself to
ISO 100.
CLICK HERE TO SEE FIGURES 18 - 26

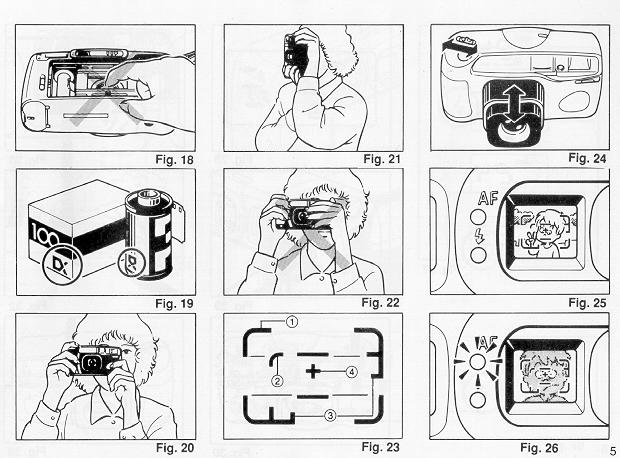

HOLDING YOUR CAMERA
1. Always use both hands to steady your camera.
* When holding the camera vertically always position it with the flash at the
top. (Fig. 21)
* Be careful not to place your fingers over the lens flash or focusing windows.
(Fig.22)
VIEWFINDER (Fig. 23)
(1) Field of View Frame:
The subject (such as people or scenery) you wish to photograph
should be set within this frame.
(2) Parallax Correction Marks: (Close focusing)
When taking a picture of a subject that is between 0.5m--1.2m away
from your camera, the subject should be positioned within these marks. Anything
outside the marks will not be included in the picture even if you can see it
through the viewfinder.
(3) Parallax Correction Marks (Super Macro Mode)
When using this special mode (see page 28), adjust the camera so
that the subject is within the smaller parallax correction marks.
(4) Single AF Mark
In the Single AF mode (see page 27), the auto-focus system focuses
automatically on any subject that appears within this small "+' target.
CLICK HERE TO SEE FIGURES 18 - 26
ZOOMING THE LENS
The built-in 38--90mm zoom lens lets you get closer to your subject without
changing your position. This lets you easily select the composition that best
suits your subject.
To zoom the lens, just slide the zoom switch (Fig. 24) in either direction until
your subject is framed properly.
* When zooming the lens, keep your fingers away from the moving lens components.
* When closing the Viewfinder Cover, the lens will return to its
storage position automatically.
* After about 3 minutes, the lens will return to wide deposition
and the display on the LCD panel will disappear
MULTI AUTO-FOCUS
1. Set the subject you wish to take within the Viewfinder Frame. (Fig. 25)
2. If the subject is closer than 0.5m the AF-Monitor will blink and the shutter
will lock to prevent out of focus pictures. (Fig.26)
* Under certain unusual conditions, the AF Monitor may not warn when you are too
close to the subject.
3. Press the Shutter Release Button gently to avoid camera shake.
4. This camera measures distance from subject to camera at 5 spots (wide-angle).
Among those spots, focusing will be adjusted to the closest subject. This
function will help avoid out-of-focus-pictures. (Examples 1, 2)
* Be careful not to accidentally cover the Auto Focus Distance Measuring Windows
on the front of your camera, as this will cause incorrect focusing.
* Keep the Auto Focus Distance Measuring Windows clean to ensure accurate
focusing. If they get dirty they should be wiped clean with a soft cloth.
* There may be rare cases when accurate focusing is difficult or impossible.
(For instance, with dark subjects that do not reflect light well, glossy
subjects, or subjects taken through glass.) In these cases, it is best to switch
to the single AF mode and use the Pre-Focus technique (see section SINGLE AF
MODE) to "lock" the focus on a more "normal". subject at the same distance.
While holding focus, turn your camera back to the original subject and shoot.
(See SINGLE AF MODE (page 27) for more details.)
CLICK HERE TO SEE FIGURES 27 - 33
REWINDING THE FILM (AUTO REVERSE)
1. After the end of the film has been reached, the film will automatically
rewind.

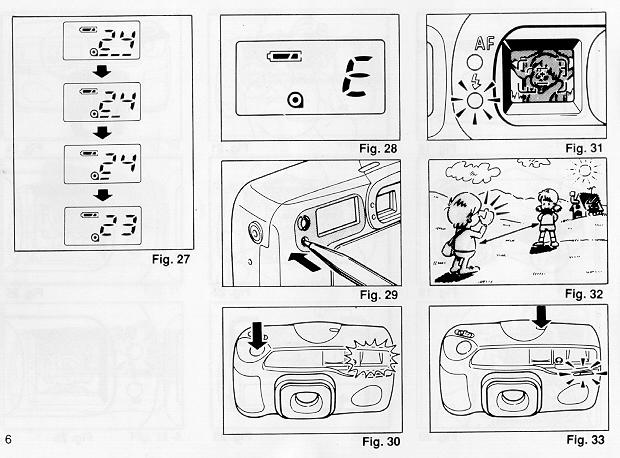

2. Film rewinding is indicated by three dashes flashing in sequence from right
to left and the counter counting backwards. (Fig. 27)
3. When the film is fully rewound, the motor stops automatically and "E" is
displayed in the LCD Panel. (Fig. 28) Open the Back Cover to unload the film.
* If you wish to rewind the film before reaching the end of the film, push the
Manual Film Rewind Button with a pen, etc. (Fig. 29) In this mode, the rewound
film will still leave part of the film leader extended out of the film cassette.
* The shutter release is locked with "E" is displayed.
* Be careful not to touch the inner lens surface with your fingers or the edge
of film.
FLASH PHOTOGRAPHY
1. If additional light is required, the built-in Flash automatically activates.
(Fig. 30)
* If the camera has shut off, turn the power back on by lightly pressing the
Shutter Button. It will take about 3 seconds to charge the flush fully.
* Recommended Flash Shooting Range (ISO 100) Wideangle: 0.5m--about 5.2m
Telephoto: 0.5m--about 3.3m
2. When the flash is still charging, the Red Flash Monitor will blink. (Fig. 31
) Wait until RED-LED turns off in order to use the flash.
* When the flash is used, there may be cases in which your subject's eyes appear
red in the finished photograph. This OCCURS when the retina reflects the flash
light, although the intensity of the phenomenon differs for each individual as
well as subject distance and how light or dark the picture-taking environment
Is.
To avoid the red eye, select the Red Eye Reduction flash mode discussed on page
25.

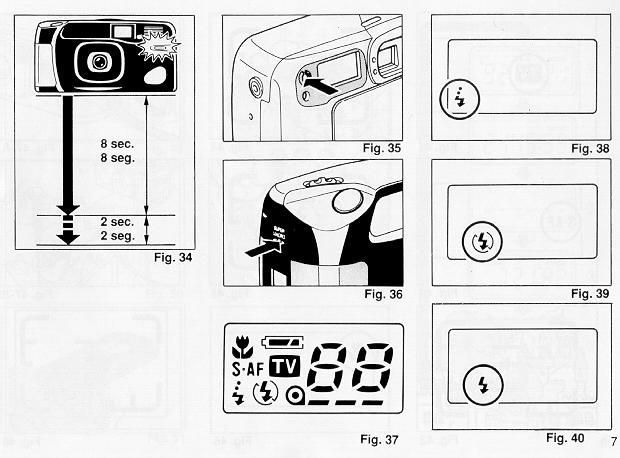

CLICK HERE TO SEE FIGURES 34 - 40
AUTO BACKLIGHT CONTROL/AUTO FILL FLASH
When taking pictures of backlit subjects, important details are after lost in
the shadows. Your camera automatically compensates for these lighting
situations. If the subject is backlit and is at least about 3 meters from the
camera, Auto Back-Light Control (ABLC) will be activated. If the subject is
within about 3 meters of the camera, the flash activates automatically and the
shadows are lightened up using automatic daylight fill-flash. Thus, with backlit
subjects, natural-looking pictures can be taken easily and automatically. (Fig.
32)
AUTO NIGHT-PHOTOGRAPHY
When photographing distant night scenes, the flash will not be
activated. Instead, the exposure will be set to a slow shutter speed for more
natural-looking results. Please your camera on a steady support to avoid un"
sharp pictures due to camera shake.
USING THE SELF-TIMER
1. Compose your picture with the camera on a steady support.
2. Press Self-timer Button. The Self-timer LED on the front of the camera will
light steadily for approximately 8 seconds. Then the LED will blink for about 2
seconds to indicate that the shutter is about to release. After a total of about
10 seconds have elapsed, the shutter will release. (Figs. 33, 34)
* If you wish to stop the self-timer once it has started, close Viewfinder Cover
or press the Self-timer Button again.
3. When you use the self-timer in bright scene, LED is not clearly visible and
dummy flash is fired just before shutter release.
Using the Self-timer for Flash Photography:
a. When the Self-timer Button is pressed the built in Flash will fire
automatically whenever there is insufficient light.
b. The flash will charge during the 10 sec. countdown.
* You may not be able to activate the self-timer when the flash is just
beginning to recharge. Wait 2-3 seconds and try again.
* If the distance between subject and camera is too close, the AF Monitor will
blink. At that time, the self-timer will not activate. Move back a little and
try again.
* Too-Close Warning Lamp (AF Monitor) will blink only when pushing Self-timer
button and/or the Shutter Release Button.
CLICK HERE TO SEE FIGURES 34 - 40
Using the Self-timer for Pre-focus Photography:
a. Select Single AF Mode (See CREATIVE MODES Section, page 24).
b. Select the subject you wish to pre-focus on. Move the camera so that it is in
Spot Auto-Focus Target.
c. Press the Shutter Release Button halfway down to adjust and lock-in the focus
and reposition the camera if necessary.
d. While holding the Shutter Release Button halfway press the Self-timer Button
to activate the self-timer
e. The focus will remain fixed at the locked-in distance until the photograph is
taken.
CREATIVE MODES
This camera includes a variety of special operating modes which permit you to
widely express your creativity. These modes include Flash-off, Flash-on, Red Eye
Reduction/Soft-flash, TV, Single-AF and Super-Macro. Many combinations may be
made using these selections with flash photography, self-timer, and/or remote
control picture taking, allowing you to fully and precisely obtain the image you
seek. Try experimenting. These modes are designed to stimulate your imagination
and creativity.
* To select operating modes, simply press the Mode Button in the LCD Panel
located on the back of the camera. (Fig. 35) (The Super Macro Button is found on
the side of the camera.) (Fig. 36)

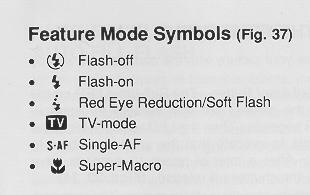

You can confirm that the desired feature mode is in effect by checking the LCD
Panel which displays the current feature mode. The symbols used for these modes
are listed below. For detailed operation of each mode, refer to their respective
sections in this manual.
CLICK HERE TO SEE FIGURES 34 - 40
RED EYE REDUCTION AND SOFT-FLASH MODE
Minimizing the Red-Eye Effect
Selecting this mode makes it possible to minimize the red-eye effect that
sometimes occurs when taking portrait photographs with flash. Now it's easy for
anyone to take superior shots of people.
1. Press the Mode Button until the
symbol appears on the LCD Panel. (Fig. 38)
2. Press the Shutter Release Button. The flash system will begin its pre-flash
cycle. After a brief delay the main flash will fire. The entire sequence will
take about one second.
* Be sure to hold the camera still after pressing the Shutter Release Button
* You may wish to advise your subjects to wait for the second flash.
* This mode does not cancel when the camera is switched off. To cancel this
mode, press the mode button again for any other selection.
Reducing Flash Output
This allows you to adjust the flash brightness to prevent excessively
overexposed pictures when photographing, for example, female subjects with light
skin at close range. (Examples 3, 4)
1. Press the Mode Button until the
symbol appears on the LCD Panel.
2. Press the Release Button The flash system will begin with the pre-flash
sequence. After a brief delay, the shutter will trip and the main flash will
fire at a reduced brightness level. The Pre-flash sequence lasts approximately
one second.
* Be sure to hold the camera still after pressing the Release Button until full
the cycle is complete and the shutter has tripped.
* To cancel this mode, press the Mode Button to select a different mode symbol
(or none) on the LCD Panel.
FLASH-OFF MODE
This mode forcibly prevents automatic firing of the flash, thus
allowing available light photography in museums, churches, etc. where flash
photography is prohibited.
1. Press the Mode Button until the
symbol appears on the LCD Panel. (Fig. 39)
2. Press the Release Button and the shutter will be tripped without flash
(maximum of approximately 1 second).
* To cancel this mode, press the Mode button until there is a different mode
symbol (or none) on the LCD Panel, or close the viewfinder cover
FLASH-ON MODE
This forcibly trips the flash when you want to photograph subjects
with sunlight to their side or back. It lets you take more natural looking
pictures by softening harsh shadows.
1. Press the Mode Button until the
symbol appears on the LCD Panel. (Fig. 40)
2. Press the Release Button. There will now be flash every time the shutter is
tripped.
* The camera will follow a daytime SYNCHRO-Sunlight Exposure program in cases of
bright light.
* The camera will go to slow synchro photography in cases of dim light.
* To cancel this mode, press the Mode Button until there is a different mode
symbol (or none) on the LCD Panel, or close the viewfinder cover.

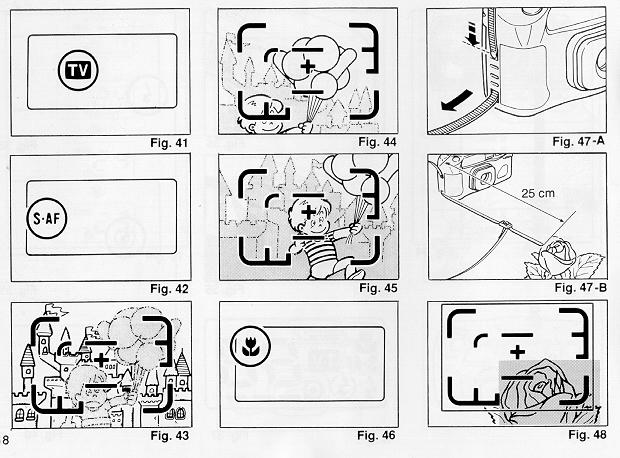

TV MODE
Use this mode to record your computer graphics or video images from the screen
of a computer monitor or television.
1. Press the Mode Button until the
mark is displayed on the LCD Panel. (Fig. 41) Take the picture.
* The Flash Unit will not activate in the TV Mode.
* When taking pictures in the TV Mode, the shutter speed will be set between
1/30 sec. (wide) and 1/16 sec. (tele) and ISO will be reset to 100.
* For TV Mode photography, slow-moving TV images will usually turn out clearer
than fast-moving ones. Using a tripod and electronic cable release is
recommended to prevent camera shake.
* To use the self-timer in this mode, press the Mode
* Button until the camera is set to TV Mode, then press the Self-timer Button.
* To cancel this mode, press the Mode Button until the LCD Panel shows a
different mode symbol (or none), or close Viewfinder Cover.
CLICK HERE TO SEE FIGURES 41 - 48
SINGLE AF MODE (PRE-FOCUS SHOOTING)
Your camera's multi-beam autofocus system will provide excellent
results in most shooting conditions. However, when the subject you wish to focus
on is behind a window, fence or bars, located high or low in the viewfinder, you
should use prefocus shooting. This will ensure a sharply focused image of your
subject.
When the subject la high or low within the viewfinder:
1. Press the Mode Button until the
symbol appears on the LCD Panel. (Fig. 42)
2. There may be cases where none of your main subjects are within the multi-beam
autofocus area located across the middle of the Viewfinder (eg. subject located
high or low). If you release the shutter then, only the background will be in
focus, and the subject will be out-of-focus. (Fig. 43)
3. To prefocus, move the camera so that one of the subjects is within the
Auto-Focus Target (+). (Fig. 44)
Press the Shutter Release Button halfway so that the AF Monitor lights up. Keep
holding your finger halfway down on the Shutter Release Button.
4. Now return the camera to its original position so that your main subjects are
composed to your linking. within the Field of View Frame again, and press the
Shutter Release Button fully to take the picture. (Fig. 45)
CLICK HERE TO SEE FIGURES 41 - 48
When the subject is difficult to focus on:
When you are photographing subjects that are difficult to focus on
(such as a black dog, glossy surface or behind glass), or if your main subject
is behind other closer objects, then find another subject at the same distance
from the camera. You can pre-focus on that subject in the following way:
1. Press the Mode Button until the
symbol appears on the LCD Panel.
2. Move the camera so that one of the subjects or "substitute subjects" is
within the Auto-Focus Target (+)
3. Press the Shutter Release Button halfway so that the AF Monitor lights up.
Keep holding your finger halfway down on the Shutter Release Button.
4. Now return the camera to its original position so that your main subjects are
in the Field of View Frame again, and press the Shutter Release Button fully to
take the picture.
* If you are shooting through a window, aim the camera at a slight angle to the
glass to minimize any direct reflection of the auto-focus beam.
* When you remove your finger from the Shutter Release Button, the pre-focus
setting is cleared, so that you can pre-focus again as many times as you wish.
SUPER MACRO
This mode allows you to photograph at 25 cm of a subject. It's
perfect for tightly framed close-up shots of plants and other small objects.
1. Press the Mode Button until the
symbol appears on the LCD Panel. (Fig. 46)
2. Stretch the strap forwards the subject and move the camera until the end of
the strap reaches the subject. (Figs. 47-A, 47-B)
3. Adjust the camera so that the subject is in the center of the Super-macro
frame of the viewfinder. (Fig. 48)
4. Press the Release Button to trip the shutter. The flash will always fire (at
low power) in this mode.
* To release this mode, either press the Super Macro Button again, operate the
Zoom Button or close the Viewfinder Cover.
ELECTRONIC REMOTE CONTROL SOCKET
This camera is equipped with an Electronic Remote Control Socket.
You can trip the shutter remotely in venous ways by plugging an (optional)
infrared sensor, audio sensor, remote controller, etc., into this socket. A 50cm
Electronic Cable Release cord, and a 10m extension cord, are also available from
Ricoh as options for use in remote control photography.
Typical Installation
1. Insert the plug of the Electronic Cable Release or Remote Controller to the
Electronic Remote Control Socket. (Fig. 49) An extension cord can be used for
taking photographs at a distance from subjects.
2. Using a secure support, aim the camera at the subject and gently press the
remote controller button. (Fig. 50)
* Before inserting or pulling out a cord into/from this socket, close the Lens
Shield. If the Lens Shield is left open, the shutter might accidentally be
released.
Optional Wireless Remote Controller RC-10
The separately sold Wireless Remote Controller RC-10 allows you to easily use remote control photography.
CLICK HERE TO SEE FIGURES 49 - 53
(OPTIONAL) DATABACK SETTINGS
Nomenclature of the date Imprinting feature (Fig. 52)
(1) Display panel
(2) Month indication
(3) Imprint mark
(4) Set button
(5) Selector button
(6) Mode selector button
Imprinting mode
Examples of date imprinting (Fig. 53)
(1) 1992 July 21st
(2) 21st 1 5:59
(3) No imprinting
(4) July21st, 1992
(5) 21st July, 1992
The date imprinting mode can be divided into 5 types: date, time, and no
imprinting.
Selecting imprinting mode (Fig. 53)
Each time the Mode selector button is pressed, the display changes as shown
below.
(1) Date (Year/month/day)
(2) Time (Day/hour/minute)
(3) No imprinting
(4) Date (Month/day/year)
(5) Date (Day/month/year)
Checking imprinting (Fig. 54)
After shooting, the imprint mark--flickers in the display panel for a few
seconds for correct imprinting. The mark and the letter "M" are not imprinted on
the picture.
Resetting the date and time (Figs. 55-A - C)
1. Each time the Selector button is pressed, the flashing digits change in the
order of year, month, day, hour, minute and colon (:).
2. When the digits to be reset flash, press the Set button until the desired
digits appear. When the Set button is kept pressed, the digits change rapidly.
CLICK HERE TO SEE FIGURES 54 - 58
Accurately setting seconds (Figs. 56-A - C)
1. Press the Mode selector button for Time display mode.
2. Press the Selector button so that the colon (:) flickers.
3. Press the Set button according to the radio or telephone time signal. The
time count starts from 0 seconds.
* It is recommended that the second digits be adjusted after adjusting the
minute digits.
Battery Replacement
The date/time function draws power from the camera battery. For
detailed information on the battery, refer to "Inserting the Battery. When
replacing the battery, if the display does not blank out, setting the date and
time after battery replacement is not necessary. But if there is nothing on the
display, set the date and time after installing new battery. Note that even when
the battery is removed, the display will still be effective for a while.
Notes on date imprinting feature
* At temperatures below 0°C (32°F), the battery performance deteriorates. The
date imprinting feature may not function correctly and imprinting may become
impossible.
* When the battery is replaced, the display panel sometimes shows wrong digits.
Reset the digits for correct indication.
* The date is sometimes illegible if it is imprinted on the following objects.
(1) "Warm"-colored objects, such as red, yellow, orange, etc.
(2) Objects with details similar in size to the imprinted date (gravel, leaves,
etc.)
(3) Objects of high luminance (sky, white wall, etc.)
* Imprinting is not possible in the following modes.
(1 ) Print off mode
(2) Reset mode
CLICK HERE TO SEE FIGURES 54 - 58
PROPER CARE
OF YOUR CAMERA
* If there is dirt on the lens or Distance Measuring Windows and in the camera
body, do not attempt to remove it with your fingers. Use a blower to blow the
dust away, or wipe the surface gently with a soft cloth. (Fig. 57)
* Camera malfunction can be caused by shock, humidity, salt etc. After using the
camera at the beach or places where there is salt spray. high humidity or
chemicals, wipe it off carefully. (Fig. 58)
* Take care not to expose the camera to sudden changes in temperature, as they
may cause condensation on the lens and inside the body, or other malfunctions.
(Fig. 59)
* Do not expose the camera for a long period of time in extremely high
temperatures, such as in your car or on the beach, as this may ruin your film,
or cause other malfunctions. (Fig. 60)
* When using a tripod, do not try to force a long screw into the socket. The
screw length should be less than 5.7 mm. (Fig. 61)
* Do not place the camera near equipment that has strong magnetic fields such as
a television or radio. (Fig. 62)
CLICK HERE TO SEE FIGURES 58 - 62
MAJOR SPECIFICATIONS:
Type:
Full-automatic 35 mm autofocus lens-shutter camera with built-in
ZOOM lens.
Lens: 38 mm f4.5--90 mm f7.2 zoom lens 7 elements 7 groups
Focus: Multi-Beam Automatic focusing with single AF facility. Distance measuring (shooting) range: 0.5 m--A. For subjects between 0.5 m and 0.25 m, the AF monitor (Green LED) blinks and shutter release locks. Super Macro Mode focuses at 0.25 m.
Self-timer: Built-in electronic type with LED indicator. Operating delay of approx. 10 sec.
Viewfinder: Albada type bright-frame zoom viewfinder
Magnification: 0.64x (at telephoto) 0.35x (at wide-angle)
Field of view: 90% (at telephoto), 77% (at wide-angle)
Viewfinder information: Field of view frame, parallax correction marks, single AF mark, super macro parallax correction marks.
Exposure adjustment: Dual SPD photocell. Programmed automate exposure adjustment with Automatic Backlight Control system.
Exposure coupling range: EV5.3--17 (ISO 100)
Shutter speed range: 1--1/400Sec.
Film speed range:
ISO 64--3200. Compatible with the DX code
system. (Non-DX films are set to ISO 100.)
Film loading:
Ricoh auto-load system
Film advance/rewind: Automatic film advance and rewind. Automatic 1st frame seeing. Automatic film rewind at the end of film.
Exposure counter: Additive, counts down during film rewind.
Built-in flash: Electronic flash automatically activates in dim light and backlight. (up to approximately 10ft.)
Flash shooting range: About 0.5--5.2 m (at wide-angle), about 0.5--3.3 m (at telephoto). (ISO 100)
Interval between flashes: About 3 sec.
Other features: Red eye reduction/Soft flash, Flash-on, Flash-off, TV mode, Single "SPOT. AF mode.
Power Source: 6V lithium battery x 1
Dimensions: 142 mm (w) x 73.5 mm (h) x 57 mm (d)
Weight:
355 g (without battery)
* Specifications are subject to change without notice.
