  Ricoh RC-5 camera





CONTENTS

Before Using
(When Using for the First Time). ... ......... .... 7

Functions of the RC-5... .. . .......... . 8

Transmitting Data to the Camera by the Remote Control Unit  . . . . . .8

R.C. Photography ... ............... 9

Special Mode (10 Modes) . .... ............... 10

Setting and Transmitting Special Mode .. 13

Message Mode ............ .. 14

Birthday Mode .............. 15

World Timer ......

World Timer Correction . 17

Message Input ..................... 18

Clearing and Erasing Messages Stored in your Camera .....

Battery Replacment .. 22

Major Specifications ... ...... .............. 23

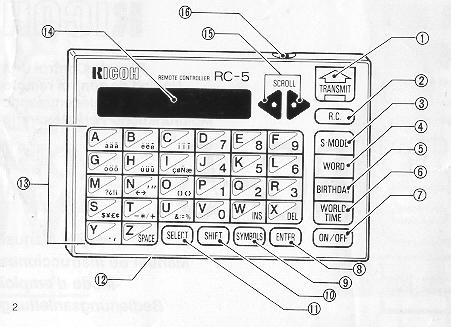

LOCATING THE CONTROLS

Ricoh RC-5 camera (1) Transmit Key
(2) R.C. Key
(3) S Mode Key
(4) Word Key
(5) Birthday Mode Key
(6) World Time Key
(7) ON/OFF Switch (8) Enter Key
(9) Symbols Key
(10) Shift Key
(11) Select Key
(12) Battery Compartment
(13)Word Input Keys
(14) LCD Display Panel
(15) Scroll Keys
(16) Transmitter


Before using this Remote Control Unit, please read this manual carefully, and be sure to follow its instructions.

· Do not put the Remote Control Unit in your back pocket, or subject it to shocks by dropping or bending.

· Do not leave the Remote Control Unit in a hot or humid place, or where it is likely to come into contact with water or dust. Be especially sure not to allow the transmitter to become dirty.

· Do not push down hard on the LCD Display Panel.

· If you encounter problems with the unit, please contact your Ricoh dealer. Do not attempt to take it apart yourself.

· Sometimes if a title is imprinted where there is something orange or white in the photograph, the title may not be clearly visible.

BEFORE USING (WHEN USING FOR THE FIRST TIME
1. Removing the Battery Protective Film To prevent waste of battery power a protective film has been inserted in the battery holder at time of shipment.

2. Setting the date and time
This unit has a built-in timer which operates together with a world timer. Once the timer is set, the timer continues to function even when the power is switched OFF. See "World Timer "Correction" for details.


FUNCTIONS OF THE RC-5

1. R.C. PHOTOGRAPHY MODE

2. SPECIAL MODE (10 modes)

3. MESSAGE MODE

4. BIRTHDAY MODE

5. WORLD TIMER

Auto Power OFF
If this Remote Control Unit is left unoperated for about 3 minutes or more, the power automatically switches OFF This is to prevent waste of battery power.

TRANSMITTING DATA TO THE CAMERA BY THE REMOTE CONTROL UNIT

Ricoh RC-5 camera

1. Set the function and data by the Remote Control Unit.

2. Press the R.C. Key at the back of the camera to display the RC symbol [ | ] on the display

3. Aim the transmitter of the Remote Control Unit towards the camera, and press the TRANSMIT Key. When the signal has been received, the LED at the front of the camera stops blinking and lights steadily.



R.C. PHOTOGRAPHY

1. Press the ON/OFF Switch to turn the power ON.

2. Press R.C. Key to display the message.

3. Press TRANSMIT Key to transmit data.

Ricoh RC-5 camera

* To continue photographing by the Remote Control Unit, repeat step 3.

SPECIAL MODE (10 modes)
The modes below can be selected, transmitted to the camera and stored by the camera This function can add 10 Special creative modes to the camera. Select one of those modes and transmit It to the camera. The transmitted mode shall be stored and control camera operation.

These 10 modes are displayed in the following order

1. Double Self-timer Mode: 1. W. SELF
Setting this mode enables you to take two Self-timer photographs in succession.
Double Self-timer photographs can only be taken by pressing the Self-timer button

2. Auto Zoom Mode: 2. AUTO ZOOM.  Even if the distance from the subject changes, the camera zooms to take a picture of the subject at a fixed size. This fixed size IS preset to provide half-length shots of human subjects.

· R.C. and Self-timer photography are also possible in this mode 3. Continuous Shooting Mode: 3. CONT.
While you press and hold the Shutter Release button continuous shooting is possible
Continuous shooting is not possible with R.C. Photography.

4. Multi-Exposure Mode: 4. ME 2 or more exposures can be superimposed on a single frame. R.C. and Self-timer photography are also possible.

5. Interval Timer Mode (1 min) :5. INT. (1 min)

6. Interval Timer Mode (10 min): 6. INT. (10 min)
After the Shutter Release Button is pressed, your camera takes a picture every minute (5) or every 10 minutes (6), until the Mode is changed or the film is finished.

The Self-timer LED on the front of the camera blinks while this Mode is in use.  This Mode can also be started from the Remote Control Unit or by using the Self-timer.

If the switches or buttons of your camera are operated during Interval Timer Mode (except

Self-timer and Shutter Release Buttons), this Mode is interrupted.   If the Shutter Release Button is pressed, Interval Timer Mode starts again

7. Backlight Control Mode (+1.5 EV): 7. BLC+1.5

8. Backlight Control Mode ( - 1.5 EV): 8. BLC--1.5  In this mode, exposure compensation is possible to brighten shadows or create a dark dramatic silhouette effect.
R.C. and Self-timer photography are also possible

9. Color Slide Film Mode: 9. SLIDE FILM Use this Mode for shooting with color slide film.

· Camera stays in Color Slide Film Mode until the film is finished or MODE CLEAR is performed, even if the camera power is switched OFF

10. Auto Bracket Mode: 10. AUTO BRACKET 3 pictures are taken in succession with 3 different exposure levels in the following order: normal +1.0 EV and--1.0 EV.

· Mode Clear: MODE CLEAR
When this message is displayed and transmitted to your camera, the Special Mode currently stored can be cancelled.

1. Press the ON/OFF Switch to turn the power ON.

2. Press the S * Mode Key to display the mode you wish to select, e.g. select AUTO ZOOM

3. Press TRANSMIT to transmit data to camera.

Ricoh RC-5 camera


· After selecting the Mode in step 2, press ENTER Key to enter the Mode The next time you press S MODE Key this Mode will be displayed first.

· The sequence in which the Modes are displayed is the same as in the section on Special Mode:

1. W. SELF--2. AUTO ZOOM--3. CONT. - 4. ME--5. INT (1 min) - 6 INT (10 min)
MODE CLEAR _ 10. AUTO BRACKET ~ 9. SLID FILM ~ 8. BLC--1.5 ~ 7. BLC+1.5


MESSAGE MODE
Any message you like can be imprinted with up to 20 characters.

1. Press the ON/OFF Switch to turn the power ON
2. Press WORD Key to make input possible Or, press WORD Key again to display the memories Messages entered in step 3 can be stored in one of  these memories.
3. Enter the message you wish using the Word Input Keys.
4. Press ENTER Key
5. Press TRANSMIT Key
Ricoh RC-5 camera

· See "Message Input" for details

· If the blinking cursor does not disappear, even when the ENTER key is pressed, you cannot transmit data.

· To change/correct the message you have entered, move the blinking cursor (M) by pressing the scroll keys < >

· If your message is already stored in one of the memories M1 -M3, you can proceed directly step 3 and step 5.

· If the camera does not receive the message, press TRANSMIT Key again.

BIRTHDAY MODE

1. Press the ON/OFF Switch to turn the power ON
2. Press BIRTHDAY Key to make input possible Or, press BIRTHDAY Key again to display the memories Messages entered in step 3 can be stored in one Or these memories.
3. Enter names using the Word input Keys.
4. Press ENTER Key
5. Enter birthdays using Word input Keys 0-9 (4 digits of year and 2 digits of month/day can be input.).
6. Press ENTER Key. The blinking cursor disappears and the name appears.
7. Press TRANSMIT Key
Ricoh RC-5 camera

When this mode is stored in the camera, the subject's age at the time you took the picture can

· If your message is already stored in one of the memories B1 -B3, you can proceed directly step 3 and step 7. See notes, "Message Mode", for other operating instructions.


WORLD TIMER
World time display and transmission

Operation
1. Press the ON/OFF Switch to turn the power ON
2. Press WORLD TIME Key
3. Enter the time zone from 01-24 by pressing the Word Input Keys (See Time Zone numbers on the back of the Remote Control Unit).
4. Press TRANSMIT Key
Ricoh RC-5 camera

If you press TRANSMIT Key while the camera is in REMOTE CONTROL Mode, the time on the camera will change. Press TRANSMIT Key only if you need to change the time on the camera. · If you press ENTER Key after step 3, the time in the time zone selected will be displayed the next time.

For countries which have daylight saving time, press S on the Word input Keys to move the time ahead 1 hour.

Each time you press the WORLD TIME Key, the display changes between hour/minute/ second and year/month/day.

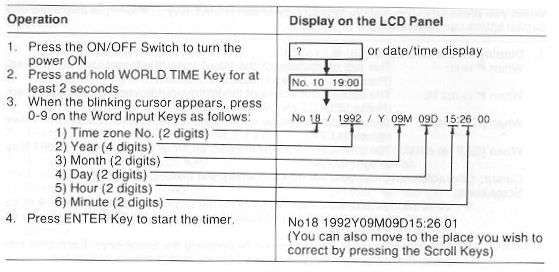

WORLD TIMER CORRECTION

Ricoh RC-5C-5 camera



MESSAGE INPUT
When you press ON/OFF Switch, WORD Key or BIRTHDAY Key, [ - CAP] is displayed and capital letters can be entered.

1. Display on the LCD Panel
When Ricoh RC-5 camera is lit: The top characters of the Word Input Keyboard can be entered.

(Press SELECT Key to cancel Ricoh RC-5 camera )

When Ricoh RC-5 camera is not lit: The bottom characters of the Word Input Keyboard can be entered.

(Press SELECT Key to light up Ricoh RC-5 camera )

When [CAP] is lit: The characters can be entered as capital letters. (Press SHIFT Key to cancel CAP)

When [CAP] is not lit: The characters can be entered as small letters. (Press SHIFT Key to light up CAP)

Cursor: Characters and numbers will be input where the blinking cursor appears.

Scroll Keys:
· Up to 15 characters can be displayed on the display panel at one time. If more than 15 characters are entered (maximum 20 characters), the display is scrolled automatically.

· The blinking cursor can be moved by pressing the Scroll keys. Each time you press the left or right Scroll Key, the blinking cursor moves one space.

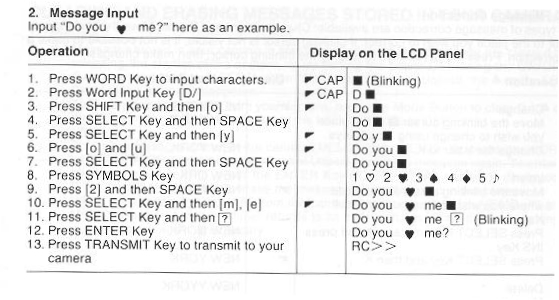

2. Message Input

Ricoh RC-5 camera

Input "Do you y me?" here as an examPle.

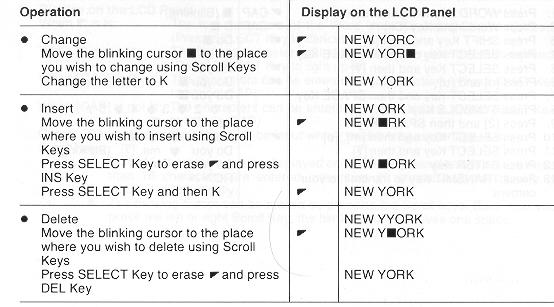

3. Message Correction
3 types of message correction are available: Change, Insert and Delete. Move the blinking cursor to the place you wish to correct. If blinking cursor is not visible, it is not possible to make a correction. Press the Scroll keys to display the blinking cursor. then make changes.

Ricoh RC-5 camera

CLEARING AND ERASING MESSAGES STORED IN YOUR CAMERA

1. Clearing
· Messages stored in your camera in Message Mode and Birthday Mode are cleared b releasing the shutter of the camera, or by turning the power OFF using the ON/OFF witch or the Auto Power OFF function. When messages are cleared, the A on the LCD Panel of the camera disappears.

· To clear stored messages from your camera, press the Mode Button to clear the A on the MEMO W or MEMO B display of the LCD Panel (Mode OFF).

· To erase messages stored in the camera (MEMO W or MEMO B) press the WORD or BIRTHDAY Key on the Remote Control Unit to display the message again.  To enter a blank space, or nothing, press the ENTER Key ([CAP] or [CAP name:] is displayed). Press the TRANSMIT Key to erase the message currently stored in the camera When you remove the batteries from the camera, messages stored in MEMO · W and MEMO · B are lost, and the timer returns to its initial settings. Enter the timer settings an messages again if necessary.


BATTERY REPLACEMENT

If [BATTERY] appears on the Display Panel when you press the ON/OFF Switch, replace the battery as follows.

1. With the Display Panel facing up, pull the Battery Holder out with your fingernail by the groove on the back

2. Place the new battery in the Battery Holder with the (+) side facing down.

· Make sure the batteries are placed with the correct polarity.

· Sometimes in cold temperatures the battery power may become weak and some functions may not work properly, or the display be dim.

MAJOR SPECIFICATIONS

Transmission method: Infrared pulse system

Operation distance: Approx. 3.5 m (RC photography)  Approx. 1 m (other features)

Display: LCD Display Panel

Timer Accuracy: +90 sec./month (at 20 C i 5°C)

Initial timer settings: 1 990Y01 M01 D 00:00 00

Timer Range: Until 2099Y  12M 31D 23:59 59

Auto Power OFF: Approx. 3 min.

Battery: CR1220(3V) x2
