Icarex / Voigtlander Cameras - Taken from long gone website

(Zeiss Icon AG, Stuttgart Germany)

Icarex 35 TM, 1969-??

Interchangeable pentaprism
Shutter: 1/2-1/1000, B
Flash: Standard X and F synch and X hot shoe, flash synch at 1/40
Meter: none

Automatic diaphragm
Instant return mirror

Icarex 35CS TM, 1970-??

As Icarex 35 TM but with coupled TTL CDS meter in finder.

Icarex 35S TM, 1970-??

Fixed pentaprism, self timer
Shutter: 1/2-1/1000, B
Flash: Standard X and F synch and X hot shoe at 1/40
Meter: TTL CdS stoped-down metering
Finder: diagonal split-image rangefinder and microprism collar in full focusing screen
Battery: ??

Automatic diaphragm
Instant return mirror

Icarex SL706, 1970(?)-??

Similar to Icarex 35S TM, but redesigned more rounded body.

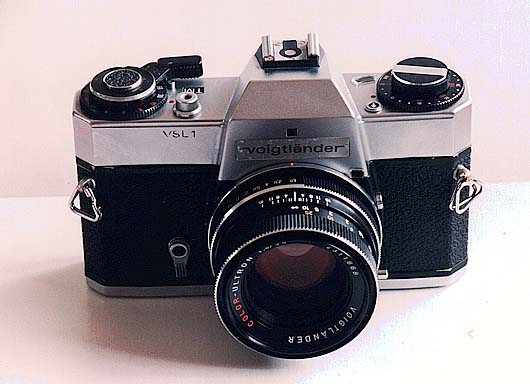

Voigtlander VSL-1 camera


Voigtlander VSL1, 1976(?)-??

Similar to Icarex SL706 but with open-aperture metering.
(On mine: "Made in Germany by Rollei" at the bottom, but lens (Color-Ultron) "Made in Singapore").

Fixed pentaprism, self timer
Shutter: 1/2 - 1/1000, B
Flash: Standard synch and hot shoe, switchable between X and F. Flash synch at 1/40
Meter: TTL Open-aperture metering with special lens, stoped-down with others
Finder: diagonal split-image rangefinder and microprism collar in full focusing screen
Battery: PX625

Automatic diaphragm
Instant return mirror
Closing eyepiece.

Lens made for Voigtlander VSL1

Lens Focal
Length
Nearest
Focus
Aperture
Range
Number of
Elements
Filter Weigth
Voigtlander Color-Skoparex 25mm 0.25m 2.8-22 8/7 49 310g
Voigtlander Color-Skoparex 35mm 0.4m 2.8-22 5/5 49 210g
Planar Rollei-HFT 50mm 0.45m 1.4-16 7/6 49 230g
Voigtlander Color-Ultron 50mm 0.45m 1.8-16 7/6 49 185g
Voigtlander Color-Dynarex 85mm 1m 2.8-22 4/4 49 195g
Voigtlander Color-Dynarex 135mm 1.6m 4-32 4/4 49 375g
Voigtlander Color-Dynarex 200mm 2.5m 4-32 6/5 67 580g
