Praktica Cameras - Taken from long gone website

(Designed and Manufactured Kamera Werkstaten Guther & Thorsch of Dresden, East Germany
Since 1959, VEB Kamera und Kinowerke, Dresden)

Very good pages about byonet and thread mount Prakticas are maintained by Tiago Franko:
http://www.  geocities.com/RodeoDrive/Mall/2536 (Geocities is gone)

Another good site, http://home.  worldonline.nl/~ferdix (site is gone), which include not only technical information, but some very nice photographs and historical information. It is maintained by Ferdi der Broeder

Praktica, 1949-??

(Similar to post-war Praktiflex, but different mount and better construction)
Shutter: 1/2, 1/5, 1/10, 1/25, 1/50, 1/100, 1/200, 1/500, B
Flash: none (synch terminals on bottom of later models)
Metering: none
Finder: Waist-level viewfinder, condenser type ground-glass
Battery: none
Non automatic diaphragm
No instant return mirror (Mirror returns with film advance)
Knob film advance

The first Praktica model with the M42 mount. Earlier Praktiflex (1938) used smaller 40 mm lens thread.

Praktica, 1952-??

Similar to the previous model, but improved viewing optics and magnifier

Praktica FX, 1955-?? (Prakticaflex FX, Astra 35 FX, Rival Reflex)

Waist-level viewfinder, condenser type ground-glass
Shutter: 1/2, 1/5, 1/10, 1/25, 1/50, 1/100, 1/200, 1/500, B
Flash: There have been different versions of the camera with different flash contacts.
Earlier version - F and X non standard contacts in the base
Later version - 3 non-standard flash contacts on the camera front: F at the bottom, X at top and neutral at the centre
Another version adopted the standard 3 mm contact and had one socket for X sync only.
Flash sync at 1/40.
Metering: none
Non automatic diaphragm
No instant return mirror

Praktica FX2, 1956-??(Practiflex FX2)

Pentaprism could be fitted on the view-finder
Shutter: 1/2, 1/5, 1/10, 1/25, 1/50, 1/100, 1/200, 1/500, B
Flash: Standard F and X Flash contacts
Metering: none
Non automatic diaphragm / some models were made with automatic diaphragm

Praktica FX3, 1957-??(Practiflex FX3)

Same as FX2 but with automatic diaphragm

Praktica IV, 1959-??

Pentaprism become permanently attached to the body
Has both the knob-wind on the top and the lever-wind on the base plate
Flash: Standard F and X Flash contacts. Synchs are 1/30 for F and 1/40 for X (marked with the flash symbol on the shutter dial)

Several models were made: IVB, IVM, IVBM, IVF and IVFB
B - expose meter, selenium cell at the pentaprism front, needle next to the rewind knob
M - Split image range fined
F - Split image range finder surrounded by the ground glass collar. This model introduced the freshnel lens over the viewing screen. Unfortunately, there was no ground glass. As the result
the screen area outside the range finder can't be used for focusing.

Shutter: 1/2, 1/5, 1/10, 1/25, 1/50, 1/100, 1/200, 1/500, B
Shutter (F model): 1/2, 1/4, 1/8, 1/30, 1/60, 1/125, 1/500, B
(note that there is no 1/15).

Automatic diaphragm
No instant return mirror


Praktica VF, 1964-??

Same as IVF but with the instant return mirror.
Model VFB (VF with the selenium meter) was also made at the same time


Praktica Nova, 1965-??

New body form: lower line pentaprism, lever wind on the top, shutter release button at an angle
at the camera top. The rewind knob now incorporates conventional fold-out crank. The back was hinged instead of being detachable as in the older models. The exposure counter become self-zeroing. The ground glass was put under the freshnel lens so the whole screen image could be used for focusing. A lock was incorporated in the release button.

Flash: Standard F and X Flash contacts. Synchs are 1/30 for F and 1/40 for X (marked with the flash symbol on the shutter dial)
Shutter: 1/2, 1/4, 1/8, 1/30, 1/60, 1/125, 1/500, B
(note that there is no 1/15).
Metering: none, but Nova B model has buildin selenium meter.

Automatic diaphragm
Instant return mirror


Prakticamat, 1965-??

Introduced the through-the-lens metering using a beam splitter to divert part of the light entering the lens to a CDS cell. (Hence, the light entering the viewing eye-piece doesn't influence meter reading).
The shutter speed range 1-1/1000, unusually set on a disk surrounding the rewind knob.

Praktica Electronic, 1966-??

Same as Nova, but with electronically controlled shutter from 30 to 1/500 and mechanical speed of 1/60 for X & F sync.

Praktica Nova I, 1967-??(Hanimex Nova I in USA)

Introduced usual shutter knob with speeds 1-1/500. (The older models had a separate knob on top of the shutter speed knob. When the arrow head on this knob was set to the black marker, the faster speeds were obtained. When it was set to the red marker - slow speeds 1/2 - 1/8 (1/10) were set).
Introduced the quick load system. Now all which need to be done is to place the film leader on the take-up spool so that the end of the film lines up with the mark below. Then close the camera back. And that's it!

Nova IB has a build in selenium meter.

Praktica Super TL, 1968-??

The split image range finder was replaced by a microprism type focusing screen.
Flash: Standard F and X Flash contacts. Synchs are 1/30 for F and 1/40 for X (marked with the flash symbol on the shutter dial)
Shutter: 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/125, 1/500, B
Metering: TTL stop-down metering (different version from the Prakticamat, so the light entering the viewfinder eyepiece may affect the meter (but usually it doesn't), as in most others cameras).

Automatic diaphragm
Instant return mirror
Quick load system

Praktica L, 1970-??

The new body shape - more compact with straight lines and squared corners. New shutter - vertically moving metal shutter (it was cloth horizontally running shutter before). Coaxial flash contacts were removed in favour of a single, X-sync. contact in the fixed accessory shoe. The rewind button was moved to the base of the camera. The automatic diaphragm mechanism was of the new design. Now the diaphragm would stay closed until the shutter closes. Before, it would stay closed only while the shutter release button is depressed. This could cause incorrect expose if the shutter release button was released during the long expose.

Flash: X Flash hot shoe. Sync is 1/100 (marked with the flash symbol on the shutter dial)
Shutter: 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/125, 1/500, 1/1000, B
Metering: none
(LB model has buildin selenium meter)

Automatic diaphragm
Instant return mirror
Quick load system


Praktica LLC, 1970-??

Same as L, but has a TTL metering at full aperture with the lens design for this model. Stoped-down metering with the ordinary screw-mount lens. The special lenses have electrical contacts transmitting the aperture setting to the meter. The meter switch is incorporated into the shutter release button.
The battery is relatively large Mallory PX21 4.5V alkaline battery (may not be available now(?)).   See this link on a Wein Air replacement battery.
The life of the battery was estimated to be 1 year.
Self-timer was introduced for the first time in Praktica.

Note from Ken Hancock: I have recently purchased a new battery for this camera (28th October 2000) as a Panasonic PX-21, so it is still available.

Work with the automatic diaphragm lenses on LLC model is not easy. Three operations need to be done simultaneously:
1) Depress the shutter-release button to switch on meter.
2) Operate stop-down switch on the lens (and it may not be available!).
3) Operate aperture control or shutter speed dial to centre the needle visible in the viewfinder.

Praktica LTL, 1972-??

Same as L but has a strait forward stop-down metering as Super TL and self-timer as LLC.
The meter uses PX625 (as Prakticamat and Super TL) battery and is controlled by a switch beside the lens mounting above the shutter release.

Praktica PLC2, 1976-??

Same as LLC but better finish

Praktica PLC3, 1978-??

Same as PLC2 but match-LEDs instead of match needle.

Praktica L2 and LB2, 1976-??

Same as L and LB but better finish.

Praktica LTL2, 1975-??

Same as LTL but match-lights instead of match needle.

Praktica LTL3, 1976-??

Updated version of LTL2.

Praktica VLC, 1974-??

Interchangeable prism and screens
Flash: F and X sync, but no hot shoe.
Shutter: Metal, 1-1/1000,B
Metering: TTL aperture open metering with electrical lens (same as LLC?)

Automatic diaphragm
Instant return mirror
Quick load system(?)

Praktica VLC 2, 1976-??

(informaton by courtesy of Chris Eve)
Interchangeable prism and screens
Flash: X Flash hot shoe. Sync is 1/100 (marked with the flash symbol on the shutter dial)
Shutter: 1-1/1000,B
Metering: TTL aperture open metering with electrical lens (same as LLC?)

Automatic diaphragm
Instant return mirror
Quick load system(?)

Praktica VLC3, 1978-??

Same as VLC2 but with split-image rangefinder

Praktica MTL3, 1978-??

Same as LTL3 but with split-image rangefinder and second sync terminal

Praktica DTL2, 1978-??

Same as LTL3 but with match-LED

Praktica DTL3, 1978-??

Same as DTL2 but with with split-image rangefinder and second sync terminal

Praktica Super TL2, 1976-??

Update of super TL with L-series body and metal shutter
Flash: Standard F and X Flash contacts, hot shoe, sync at 1/125.
Shutter: 1-1/500, B
Metering: TTL stop-down metering

Automatic diaphragm
Instant return mirror

Praktica Super TL3, 1978-??

Same as TL2 but with with split-image rangefinder and second sync terminal

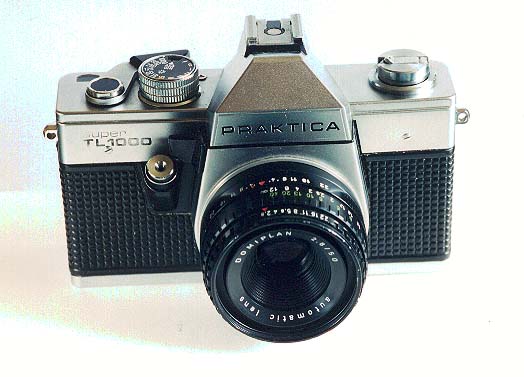

Praktica Super TL 1000

Praktica Super TL 1000, 1980-??

Same as TL3 but with top shutter speed of 1/1000 and without second sync terminal.

Praktica Super TL 500, 1981-??

Same as TL 1000 but with top shutter speed of 1/500.

Praktica EE-2, 1976-??

Automatic and manual exposure camera.
Shutter: Metal, 1-1/1000 stepless electronic and 1/30-1/1000+B manual and mechanical.
Flash: Standard F and X Flash contacts, hot shoe.
Metering: TTL open-aperture with Pentacon electric lens
Automatic diaphragm
Instant return mirror
Self-timer
View finder blind
Has aperture priority exposure.

Praktica EE-3, 1979-??

Same as EE-2 but with with split-image rangefinder and second sync terminal

Praktica MTL 5 (or 5B) (Revueflex ML, in Germany), 1984-??

L-type body and match-needle
Shutter: Metal, 1-1/1000, B
Flash: Standard F and X Flash contacts, hot shoe, sync at 1/125.
Metering: Stoped down TTL metering, CDS cell
Automatic diaphragm
Instant return mirror
Self-timer
Diagonal split-image range finder and microprism.

Praktica MTL 50, 1985-??

Same as MTL 5, but with match-LED


Lenses for Praktica LLC

Lens Focal Length Max Aperture Diaphragm
Meyer Orestegon 29 2.8 Auto
Schneider Curtagon 35 2.8 Auto
Zeiss Pancolor 50 1.8 Auto
Meyer Oreston 50 1.8 Auto
Meyer Orestor 100 2.8 Auto
Schneider Tele Xenar 135 3.5 Auto

Lenses for all Praktica cameras

Lens Focal length Max Aperture Diaphragm
Zeiss Flectogon 20 4 Auto
Meyer Orestigon 29 2.8 Auto
Meyer Lydith 30 3.5 Preset
Zeiss Flectogon 35 2.8 Auto
Zeiss Pancolor 50 1.8 Auto
Meyer Oreston 50 1.8 Auto
Zeiss Tessar 50 2.8 Auto
Zeiss Pancolor 55 1.4 Auto
Zeiss Pancolor 75 1.4 Auto
Meyer Orestor 100 2.8 Auto
Zeiss Jena S 135 3.5 Auto
Meyer Orestor 135 2.8 Preset
Zeiss Jena S 180 2.8 Auto
Meyer Orestegor 200 4 Preset
Zeiss Jena S 300 4 Auto
Meyer Orestegor 300 4 Preset
Meyer Orestegor 500 5.6 Preset
Zeiss Catopric Lens 500 4 Fixed
Zeiss Catopric Lens 1000 5.6 Fixed
Note 1. Apparently not all lenses are listed in the above table. A saw several manual diaphragm lenses of Meyer (50/2.8 and 100/2.8) and several more are mentioned in [1]. This table is the copy of the table on page 275 of the [2].

Note 2. According to [2] all Meyer lenses will eventually be known as Pentacon lenses for the non-electric models and Pentacon Electric for the Praktica LLC.

Note 3. Of course, all thread mount lenses can be used on the Praktica cameras. (See, however, note about LLC).

From :
I've noticed some absence into the lens list for Praktica cameras: There was also a Carl Zeiss Jena MC Flektogon 2,8/20 (MultiCoated, I own one of this wonderful lenses). I never saw a Carl Zeiss Jena Flektogon 2,8/35, I saw many f/2,4 (MC or not MC). There was a Carl Zeiss Jena MC Pancolar 1,8/80 (I owned one) There was a Carl Zeiss Jena MC Sonnar 2,8/200 (It seems to be an outstanding lens, definitely better than the ancient Olympia Sonnar 2,8/180. I saw one modified to fit Leica R cameras, but is a very rare lens).


How good are the Praktica cameras

I have never used any Prakticas, but L-series seems to have a good selection of features.

On the other hand, to quote [1]:
"For me, the golden age of the Praktica was during the late fifties and early sixties, during the IV, IVF and VF period. Find a good, little-used example of any of those, preferably with the f/2.8 Tessar or an f/2 Biotar, and you will have more picture-taking ability per pound spent than you could obtain from almost any other camera".
And another one from [1]:
"The Praktica line took a decided turn for the worse when, during 1965, VEB replaced the IV and VF series with the Praktica Nova cameras. These are lighter, altogether cheaper in feel and operation, and far less likely, thirty years on, to be working as they should. During the gestation of this book I have bought a Praktica Nova, Nova IB and a Super TL. None of them worked properly in all major respects, although the Nova survived about four films before the shutter developed problems."

Some more comments from [3]:
"These latter Prakticas (including LTL) are probably the least expensive SLRs that still do the job reasonably well. ... Praktica's vertical shutter is very reliable and does not normally require attention."

From
I own a Praktica LLC with the Pancolar 1,8/50 (very good lens), but the battery I use is a normal AA 1.5V; it's a reliable camera, with a dark finder.

From Stanley Buck
I used the Super TL for about 14 years during the early 1970s. I was very satisfied with it. I got the whole outfit, mailorder, with extra lenses for about 99 dollars. I took hundreds of excellent pictures with it, many of professional quality. Yes, the camera body lacks the quality of a good Pentax SP, but it worked for me. I still have the camera, and it still works and looks good. I haven't used it for a few years, since I normally use a Minolta XGA body with a Tamron 28 to 70 zoom macro. When I want to do good copy work, I use the Praktica's lens, a Meyer Oreston f1.8. The lens has nearly macro focusing, and is as good as any lens that I have owned, and I have some good ones. Once in awhile, I use the Meyer lens on my Minolta, using a thread mount adaptor. Big deal, so I have to open and close the lens manually, it still produces excellent pictures, and it is superior to many Japanese lenses, especially cheaper Minolta products, and Vivitar, which I dislike. I wouldn't feel too uncomfortable if I went back to using the Super TL regularly; after all, it's the pictures that count, and the Super TL, with all its worts, works great.

From Silvan Urfer
I love the Praktica PLC 2, especially with the Pentacon lenses (50mm, 1:1,6). Unfortunately, it is very difficult to find the batteries at the moment. But if I wanted a semi-auomatic camera without any computerized features (which I hate) that still has stop-down switch lenses, I would have to buy a Leica. I use this PLC 2 since 1990 and have got it from my father who used it since 1977, and it has never ever had any technical problems. The Pentacon lenses, on the other hand, have made trouble several times because of the aperture mechanism. I also use some non-electrical lenses on the PLC 2 (mostly a 55 mm 1:1,8) and have never found it difficult to make measurments using the stop-down switch.

From
My first SLR Camera was the Super TL 1000, bought in the early eighties, when i was a pupil. They sold it very cheap in West Germany (half the price as a Japanese SLR), cause the GDR needes western currency, and so they sold all their "good" products in West Germany (Radios, TVs, Motorcycles) for dumping prices. It's one of the best cameras, I still use it. Easy to handle, stronger than steel and thougher than diamonds. Survived travels in the whole world. I changed the orignal Objektive (50mm/f2.8) to a russian (Zenith/helios 58mm/f2.0) cause the original objektives surface was scratched (i never used a filter for protektion or ever a cap)
Resume: A f...... good camera.

While I (aab) agree in general with the previous letter about Super TL 1000, I must note that in order to make it cheap, the designers used metall with a high persentage of carbon for internals of the camera. As the result, it may not handle drops very well. The weak places are the strap lags. Strong impact on them may cause serious damage to the camera.

From  For me, the Praktica LLC is the standard by which all other cameras will be judged. The optics - Meyer - are hard to match and no other camera that I encountered during the seventies truly was truly automatic. The so-called Automatic and Spotmatic cameras from Pentax only metered by use of the light actually making it through the stopped-down lens. Even today, when I encounter a camera touted as "automatic" I have to ask what they really mean. The Praktica is a very easy-to-use, reliable camera.
I should add that after twenty years I had this camera dismantled and inspected by a repair man. He noted that I had had this camera "at the beach". In fact this camera had spent twenty years on the ocean with only a very mild deposit of salt inside.

(Note from aab: Indeed for most of the M42 thread mount cameras in 60th and early 70th, the word automatic means that they use lens with automatic diaphragm. Even more confusing word "semiautomatic" used in Russian Zenits - it mean just that the camera has TTL meter. But it doesn't mean that there were no auto exposure cameras. For example, Cosina Hi-Lite EC II and Chinon memotrons used aperture priority auto exposure (AE) with any screw-mount lens. Fujica AZ1 and ST901 offered AE for lens with Fujica's screw-mount lens. And, of course, pentax ES and ESII offered AE for lens with Pentax F screw-mount (SMC takumars) ).


I have used the Praktica LB (my first SLR) and the MTL5 and they were both fine until they developed the same shutter fault. I have since been wary of the cameras but the Carl Zeiss Jena lenses can be superb. I use the 300/4 and 180/2.8 'Olympic' Sonnars on my Pentax SPII and on the medium format Pentacon 6TL camera. I also use the 50/1.8 Pancolor and the 35/2.8 Flektagon - these are excellent lenses - equal to the Pentax M42 and Canon equivalents that I use. The Tessar 50/2.8 can be pretty good but it is not multicoated. The 135/3.5 Sonnar is excellent and often cheap to buy in the UK The 20/2.8 and the 80/1.8 are also superb but I cannot find either, so I guess the people who have them, keep them!
One more to add to the lens list - I have seen a 25mm F4 wide angle Zeiss Flektagon lens that appeared to be contempory with the 20/4 Flektagon of the 1960's.
I can confirm there were 2 versions of the 35mm lens, the earlier F2.8 version with a bigger front element and the later F2.4 version. Both are excellent to use but the earlier version is better constructed.
Praktica also made good quality bellows and viewfinder accessories that are often very good value.

Just a comment about 50/1.8 Pancolor lens. I (aab) used it a little and found it to be soft wide open. But may be it was just my version. Also, according my own experience and some other sources, the Pancolor has a tendency to develop diaphragm problems. Apparently, the small holes which keep the diaphragm blades in place may became loose.

Do you have any experience in using Prakticas that you want to share?
