Ricoh XR-X3pf
On-line manual - part II of V

This camera manual library is for reference and
historical purposes, all rights reserved.
This page is copyright© by Butkus Camera Manual Site, M. Butkus, N.J.
This page may not be sold or distributed without the
expressed permission of the producer
I have no connection with Ricoh Cameras, Japan

Back to main Camera Manual site

To part I To Part III To Part IV

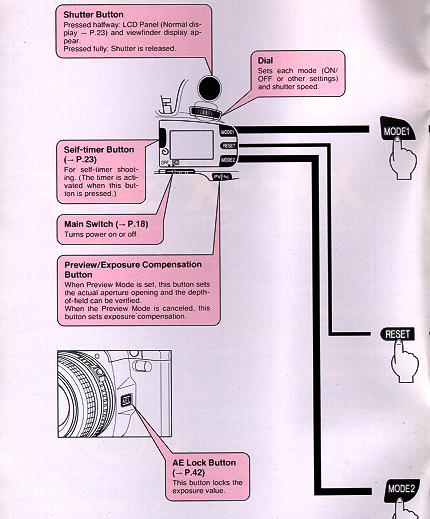

1. Locating the Controls pg4

Ricoh XR-X 3pf camera

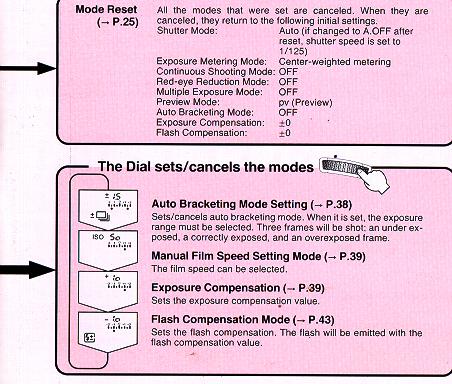

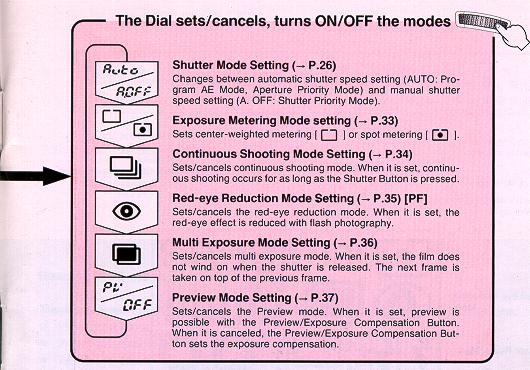

2. Function Map pg. 4

Ricoh XR-X3pf camera


Ricoh XR-X3pf camera

pg.5

Ricoh XR-X3pf camera

Ricoh XR-X3pf camera



Ricoh XR-X3pf camera


Ricoh XR-X3pf camera


Ricoh XR-X3pf camera

Ricoh XR-X3pf camera

Ricoh XR-X3pf camera
